Benchmarks

Comparisons with other open-source Pauli and Majorana propagation engines, and an internal pytest suite for detecting regressions.

ResultsCopy Anchor Link

All results are from exclusive nodes on Leonardo (CINECA); conditions under Methods.

Pauli propagationCopy Anchor Link

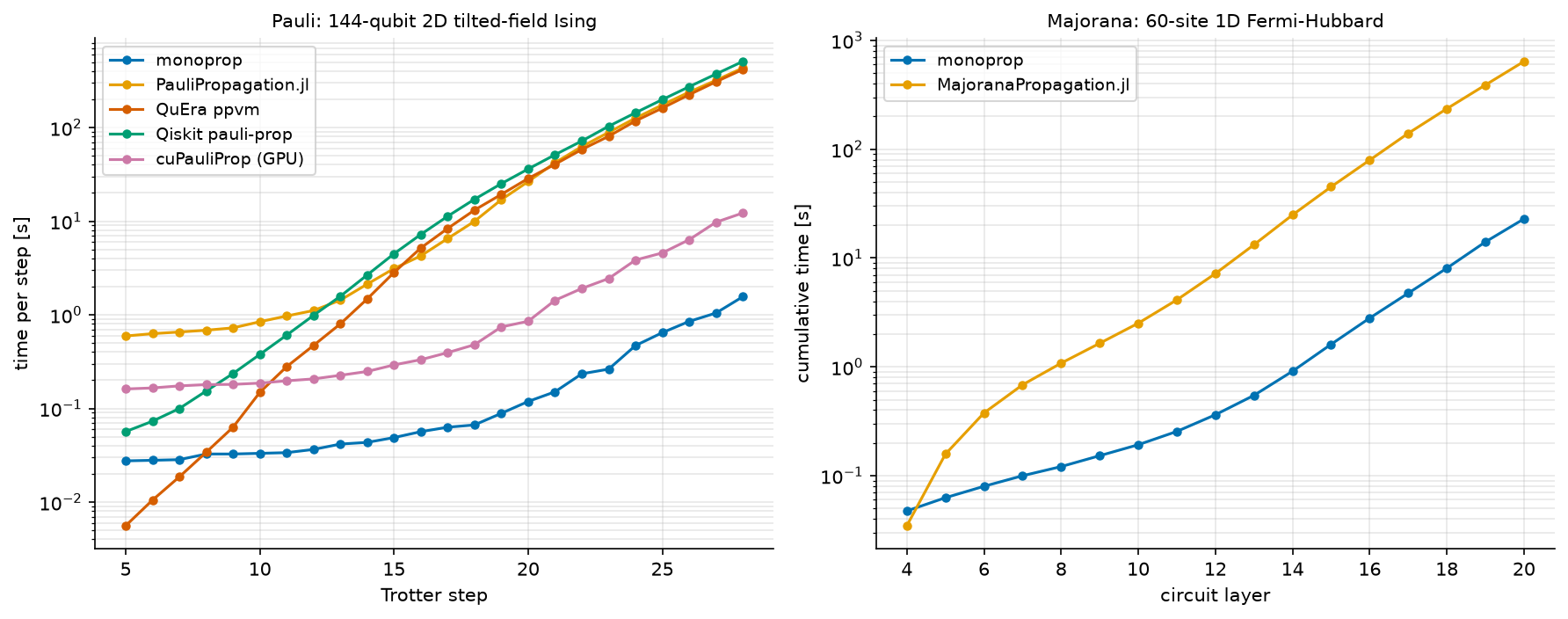

Trotterized evolution of a 2D tilted-field Ising model, evaluating a ZZ correlator on a fixed qubit pair. One experiment varies depth, the other lattice size.

Fixed lattice, increasing depthCopy Anchor Link

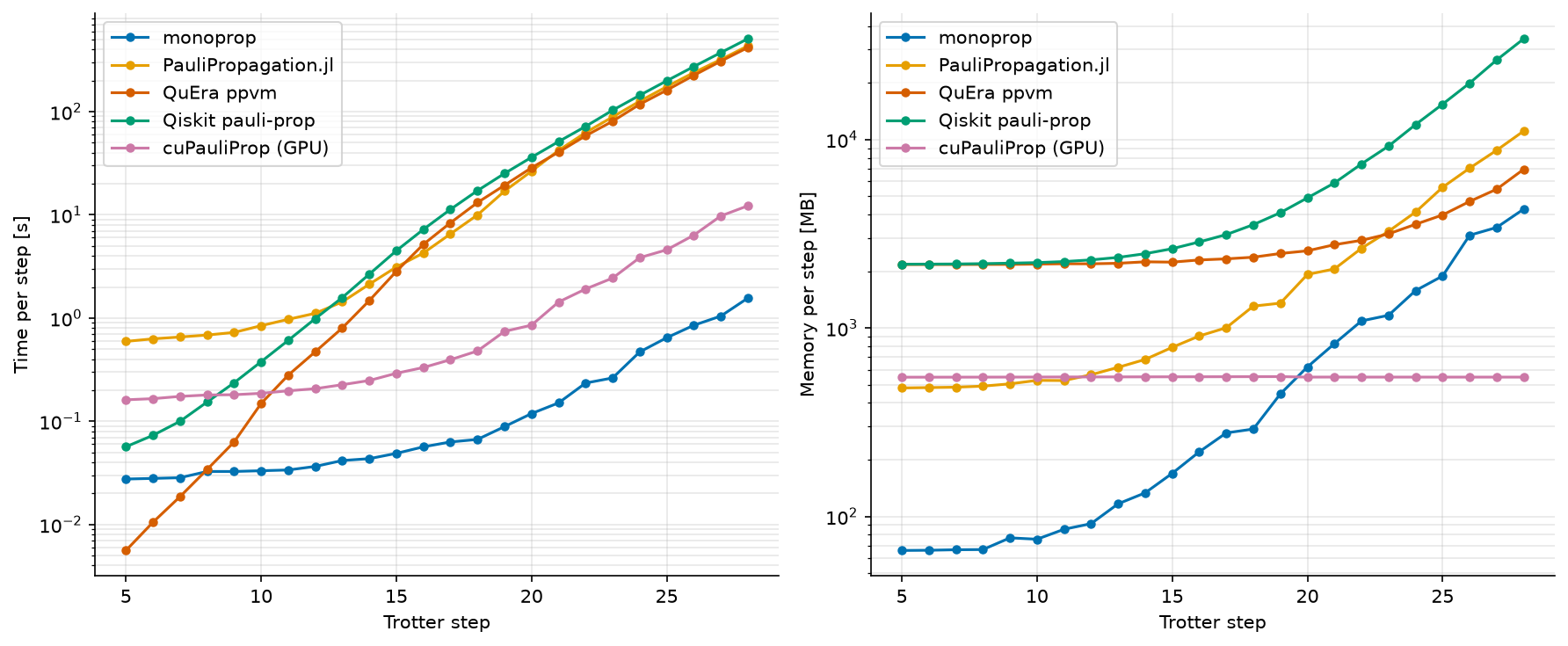

12×12 lattice (144 qubits), 28 Trotter points, dt = 0.05, coefficient threshold 1e-6, no weight cutoff; ~33 million terms at the end.

The x axes count actual Trotter steps, 1–28 (t = 1.4 at the end), not the stored labels 0, 2, …, 54. Runtime omits the first step's warm-up measurement; memory includes it.

Observables differ by at most 3.8e-4 among the coefficient-threshold implementations; 2.8e-3 for Qiskit pauli-prop, which truncates by term count instead. cuPauliProp's column is peak device allocation, its operator being on the GPU; its host RSS was 552 MB.

Increasing lattice sizeCopy Anchor Link

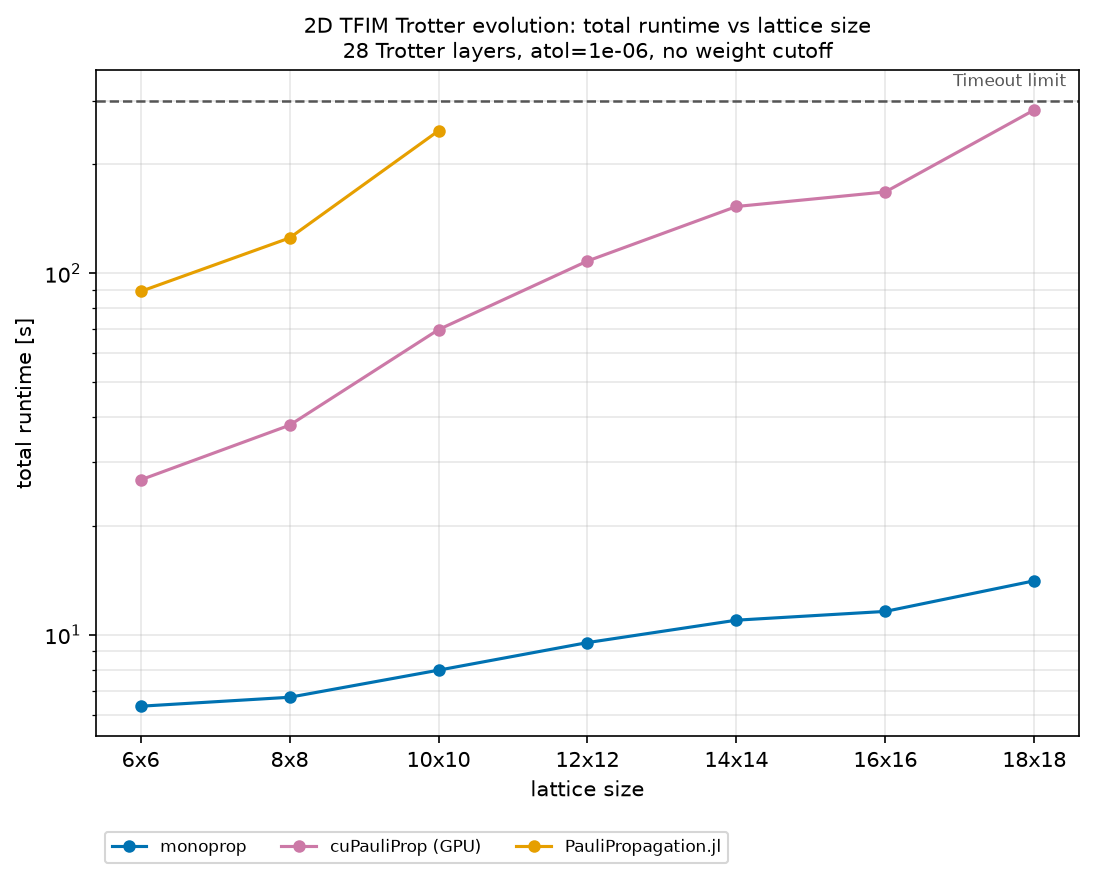

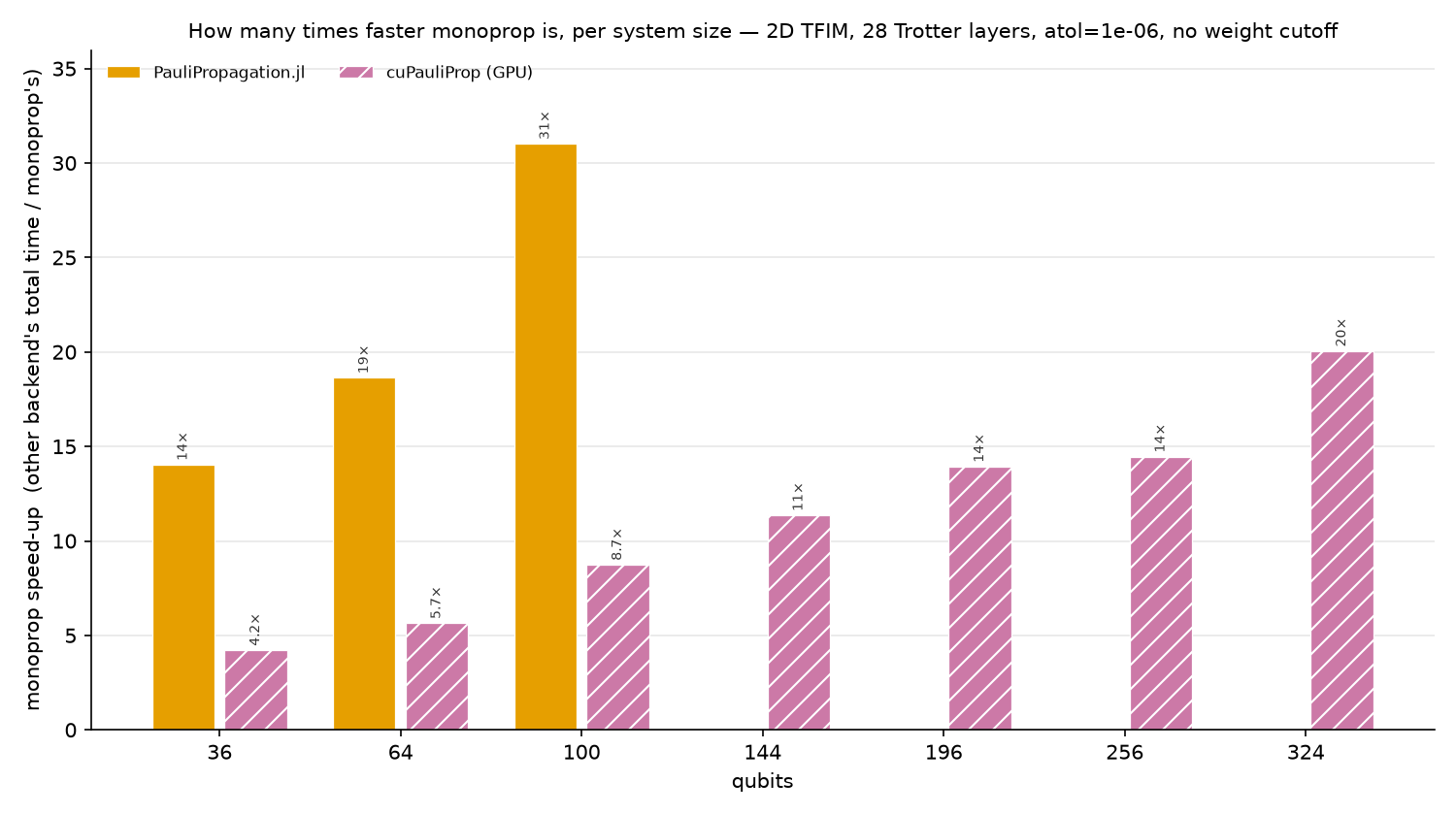

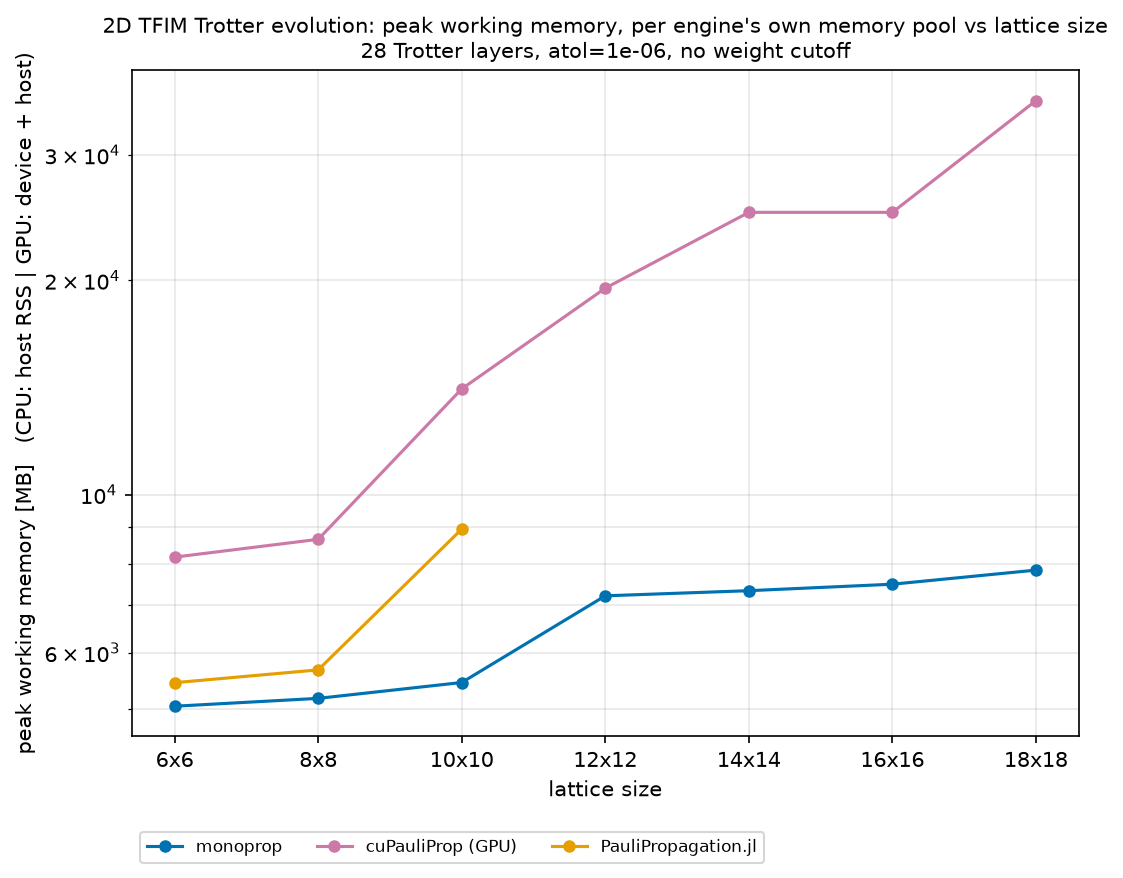

Depth and threshold fixed, lattice 6×6 (36 qubits) to 18×18 (324 qubits), one subprocess per (size, implementation) under a 300 s limit. That limit — not the implementations — excludes QuEra ppvm and Qiskit pauli-prop everywhere, PauliPropagation.jl above 10×10.

Majorana propagationCopy Anchor Link

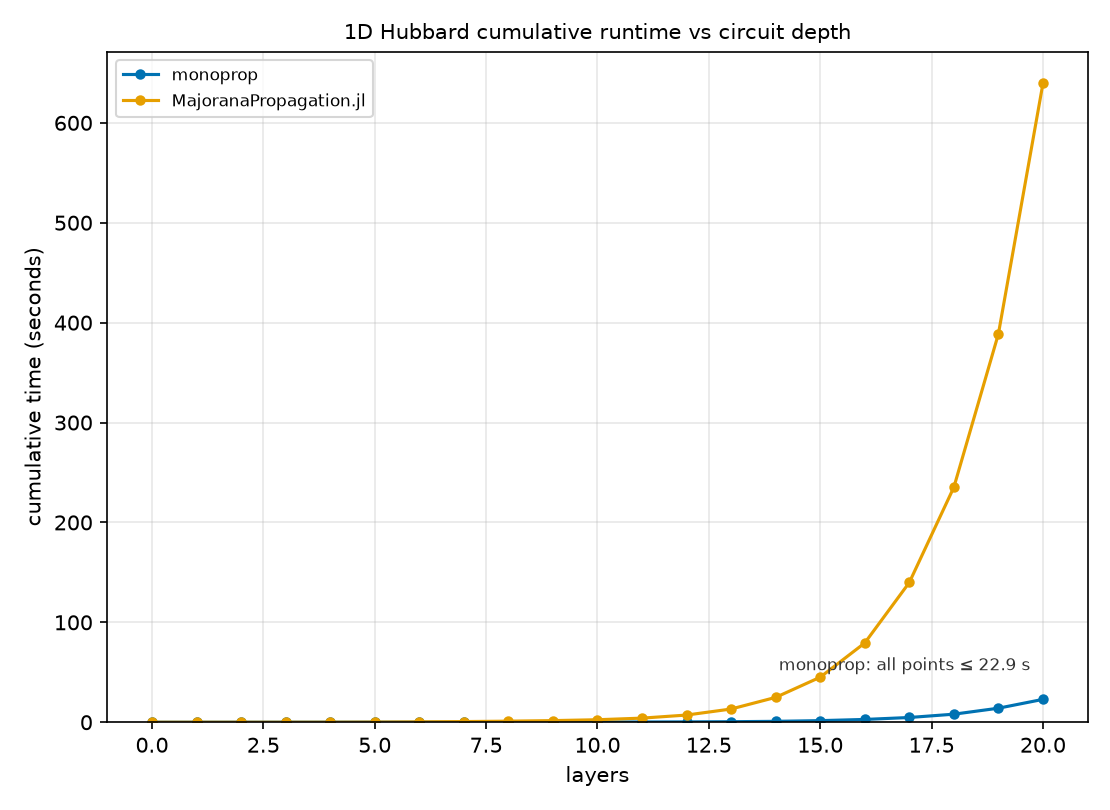

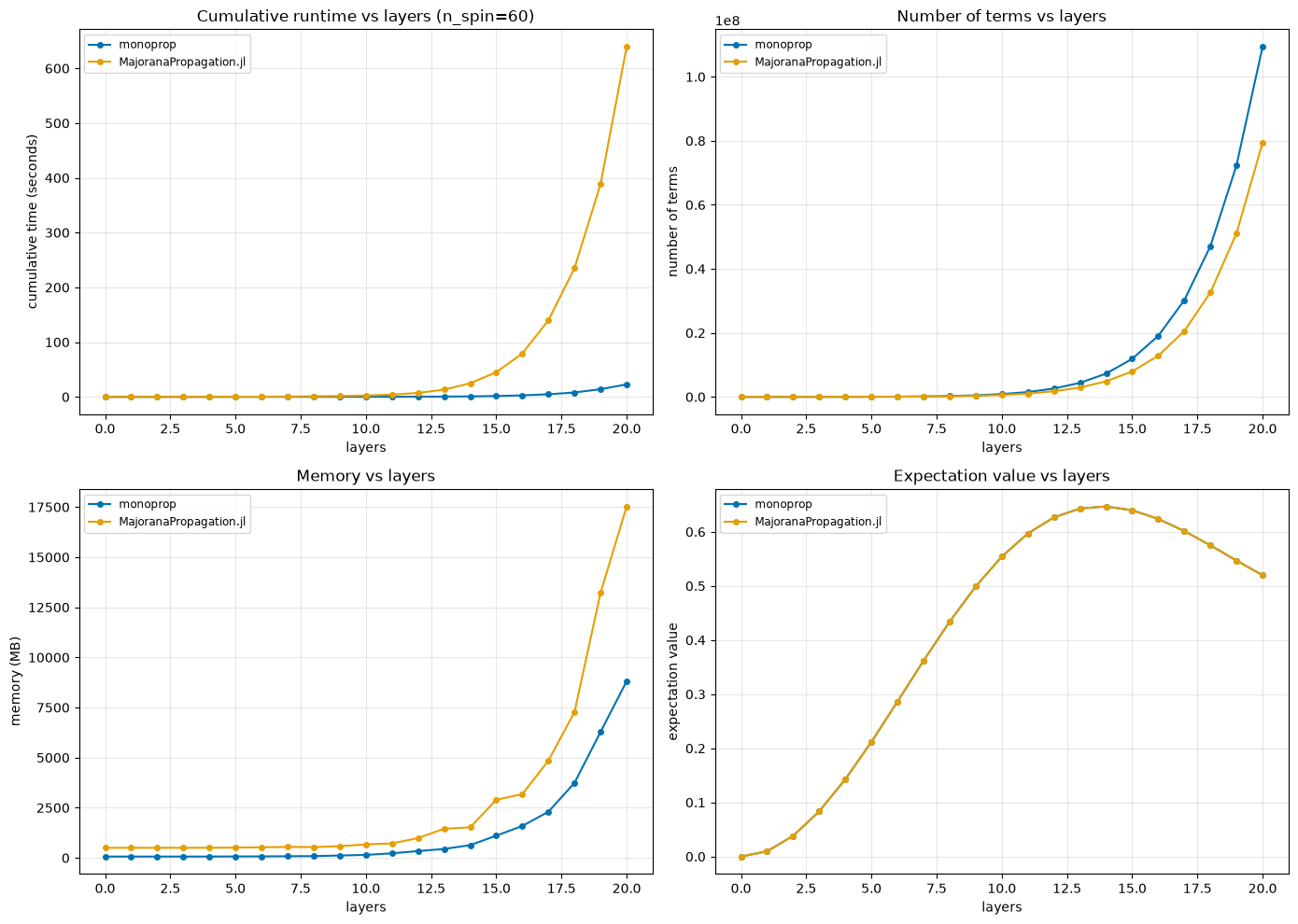

20 Trotter layers of a 1D Fermi-Hubbard model, 60 spinful sites, 24 threads both sides; runtime, expectation value, term count and memory recorded per layer.

CaveatsCopy Anchor Link

• CPU parallelism differs, so these are wall-clock ratios, not per-core ones. QuEra ppvm and Qiskit pauli-prop propagate on one core (0.99 measured active cores); the ppvm bindings expose the serial indexmap variant rather than the Rayon-parallel config::dashmap, and Qiskit's _accelerate has no parallel propagation path.
• The Julia benchmarks use the fastest documented containers: VectorPauliSum with Performance.propagate! (development branch 0.8.0 or later) and VectorMajoranaSum with AcceleratedKernels; the dictionary-backed alternatives are serial. The vector Pauli path does not merge duplicate strings, so its term count is a storage count.
• CPU and GPU use different node types, so the cuPauliProp comparison includes hardware as well as implementation effects.

MethodsCopy Anchor Link

Drivers: packages/bench-third-party, a standalone uv project, outside the workspace because it needs CUDA-specific wheels and a narrower Python range.

HardwareCopy Anchor Link

Different partitions for CPU and GPU, because Leonardo's DCGP nodes have no GPUs.

Best known configuration each: monoprop on all 56 cores of one socket, PauliPropagation.jl on 28 threads, more reducing its throughput. Every record carries host, threads, library_version.

How memory is measuredCopy Anchor Link

Peak resident set size, from the kernel's VmHWM, with shared pages counted in full; peak device allocation for cuPauliProp instead. Exact, and identical for every CPU implementation over the timed region, reset per step behind gc.collect() + malloc_trim (GC.gc() for Julia). native_memory additionally records each implementation's own estimate, comparable only within one implementation.

ReproducingCopy Anchor Link

cd packages/bench-third-party
uv sync    # monoprop (editable), qiskit, ppvm, pauli-prop, cuquantum-python-cu12

# Julia only for the Julia comparisons
curl -fsSL https://install.julialang.org | sh          # juliaup + latest stable Julia
julia -e 'using Pkg; Pkg.add(["JSON", "ProgressMeter"])'

# Pauli, fixed lattice; edit settings.json to change the model
cd pauli_prop
uv run python run_model.py        # CPU engines -> results.json
julia run_model.jl                # optional; merges PauliPropagation.jl in
uv run python run_model.py --backends cupauliprop -o results_gpu.json   # on a GPU node
uv run python plot_results.py

# Pauli, lattice sweep; 300 s limit per (size, engine)
uv run python run_scaling.py --output scaling_cpu.jsonl --timeout 300 \
    --backends monoprop juliapp ppvm qiskit --threads monoprop=56 juliapp=28
uv run python run_scaling.py --output scaling_gpu.jsonl --timeout 300 \
    --backends cupauliprop                                   # on a GPU node

# The first input takes precedence when a backend occurs in both files
uv run python plot_scaling.py scaling_cpu.jsonl scaling_gpu.jsonl
uv run python plot_scaling.py scaling_cpu.jsonl scaling_gpu.jsonl \
    --memory-key working_set_MB
uv run python plot_speedup.py scaling_cpu.jsonl scaling_gpu.jsonl

# Majorana
cd ../majorana_prop
monoprop_NUM_THREADS=24 JULIA_NUM_THREADS=24 bash run_benchmarks.sh

# Two-panel headline figure from both committed result sets
cd .. && uv run python plot_headline.py

# Refresh the figures served by these docs, from the repository root
just update-figures

Model parameters: settings.json. Output schemas and per-implementation limitations: packages/bench-third-party/README.md.

Internal benchmarksCopy Anchor Link

A pytest suite measuring runtime and peak RSS of core operations, separate from the functional tests and run with just bench.

RunningCopy Anchor Link

Each run takes a label, naming its column in results/REPORT.md, so configurations sit side by side. Extra arguments go to pytest.

uv sync --group bench                          # once

just bench serial                              # serial run, column "serial"
just bench-smoke                               # quick sanity check (tiny sizes)
just bench serial --num-modes 64 --bench-rounds 10

monoprop_NUM_THREADS=10 just bench serial-t10  # cap the partition count

uv run --group bench monoprop-bench-report benches/results  # rebuild report, no re-run

Both groups measure the same four operations — build_graph, propagate, energy, gradient:

• bench_random.py: a random problem, both pictures. --gen-length (4), --obs-terms (10000), --num-generators (100), --num-modes (128), --cutoff (6), --seed (0), --bench-rounds (1); defaults in parentheses.
• bench_models.py: two fixed models marked slow, Heisenberg only — a 120-qubit Fermi-Hubbard 29-step Trotter run ([hubbard]) and a 127-qubit kicked-Ising run over 20 layers ([pauli]). Override any config field with --<model>-<field>, e.g. --pauli-num-layers 30; just bench --help lists them.

One group per process at scale: build_graph/propagate and energy/gradient each hold their own operator, so all four together hold two per rank. Timings go to results/time-<label>.json, the rest to <label>.json.

MPICopy Anchor Link

Barriers delimit each timed operation, so runtime is the makespan across ranks. Memory is the sum of per-rank peak RSS: an upper bound, shared pages counted once per rank and rank-local peaks summed even when they never coexisted.

monoprop_PARTITIONS is mandatory above one rank — the engine's default is ranks == 1 ? cores : 1, which would silently measure one partition per rank — and the declared shape is recorded in meta.

just bench-build-mpi                           # build once (MPI on)
monoprop_PARTITIONS=2 monoprop_NUM_THREADS=2 just bench-mpi r5t2 5 --map-by slot:PE=2 --bind-to core

Benchmarking ladderCopy Anchor Link

benches/LADDER.md holds the development ladder: five groups of configurations, each row's flags and selector, and the shapes to run them at. Consecutive rungs differ in exactly one thing, so a regression at one and not the one below names its own cause.

Continuous benchmarkingCopy Anchor Link

bench_bare_metal.yml benchmarks every commit on main on a dedicated RunsOn EC2 node; Bencher records the series and reports threshold violations. The ladder itself lives in bench.yml. To reproduce a rung locally, declare its shape and take its selector and flags from the tables below — the label is your own:

export monoprop_PARTITIONS=1 monoprop_NUM_THREADS=1     # the shape, declared
just bench l1-hubbard --bench-rounds 3 -k "test_model_propagate and hubbard"

export monoprop_PARTITIONS=2 monoprop_NUM_THREADS=2     # P sizes the pinning
just bench-mpi l2b 4 --map-by slot:PE=2 --bind-to core
monoprop-bench-bmf benches/results l2b    # results as Bencher Metric Format JSON

monoprop-bench-bmf merges both artifacts: each upload accepts one adapter, and the stock python_pytest one keeps only timings.

The ~GiB columns below are peak-memory. terms is deterministic for a fixed seed and size, so any change is an algorithmic one — the only check that a timing win is not an accuracy change. Timing alerts do not fail the build.

The rungsCopy Anchor Link

Bencher keys history on (branch, testbed, benchmark, measure), so a testbed is one machine and one shape. It is the rung name up to the first .: <cpu>-<cores>c-<prefix>, from a slugified brand_raw and the physical core count. On the pinned c7i.4xlarge — 16 vCPU / 8 physical cores, 32 GiB nominal (~30 usable), no swap — three testbeds: intel-xeon-platinum-8488c-8c-L1, -L2a and -L2b.

• One node, one MPI-enabled build, so an edge moves the shape and nothing else.
• R × P = 8 at both L2 shapes. 4 × 2 pays the per-rank cost four times on one node, so it is the memory-worst shape and the one the size ceiling is set against; P = 2 keeps more than one partition inside a rank, which 8 × 1 would not.
• Rounds is 1 above L1 because pedantic builds round k+1's propagator before releasing k's — a memory setting, not a statistics one.

The rowsCopy Anchor Link

Two processes per shape, reporting to its one testbed, so all six rows share a plot. build_graph publishes the graph energy and gradient evaluate, so those three share an operator and the process peak is the max over them. propagate builds its own, and a fourth row holding its own would make that peak a sum — at L2 the random row alone is 15.02 GiB on top of L2a.ops's 18.35 GiB against ~30 usable. The three propagate models do share a process, each releasing its operator when its row ends.

Selectors: .ops is -k "(test_random_build_graph or test_random_energy or test_random_gradient) and heisenberg", .propagate is -k "test_model_propagate or (test_random_propagate and heisenberg)". Both take --num-generators=1000 --num-modes=142 --cutoff=6, plus:

L1, at sizes one thread carries, so every L2 row has a baseline below it:

Before L1 was split that last row read 3.91 GiB, measured while build_graph's graph was still resident; on a floor of its own it is 2.10, so peak-memory now means at L1 what it means at L2.

L2a.ops and L2b.ops, ~25 GiB:

L2a.propagate and L2b.propagate:

• Process peaks: 19.11 and 21.11 GiB at 1 × 8, in 135 s and 6:57; 23.71 and 22.15 GiB/node at 4 × 2, in 90 s and 6:59. A testbed's two processes never sum.
• ~GiB/node sums the node's ranks and errs high, a page shared between ranks being charged to each: the number to provision against, the wrong one to divide.
• Same flags at both L2 shapes, so their term counts must match — the geometry-independence check, held to 0% by terms.
• The sizes are the largest measured points that fit, swept at 4 × 2. A size past that OOM-kills the instance rather than the process, taking the artifact upload with it — hence the cat of each bmf-<rung>.json in bench.yml. LADDER.md's own fixed-model rows are sized for a 128-core node, not this one, and its pared L1 row is absent because --pare-threshold is session-wide.

InputsCopy Anchor Link

rungs is one rung per line, <name> <ranks> <partitions> <rounds> | <pytest args>: partitions an integer or per-rank for one per physical core of the rank's share, and a .suffix picking the process within a shape. A shape that does not fit is refused rather than oversubscribed, and every rung reads its ranks, partitions_env and thread placement back out of its result JSON. Once a testbed has history these should stay fixed — a new shape is a new prefix, so a new testbed.

No benchmark workflow gates a pull request. It tracks main, and a threshold is a report, not a verdict. Each rung's bmf-<rung>.json and raw result JSON upload as an artifact, so a failed upload does not take the measurement with it.
